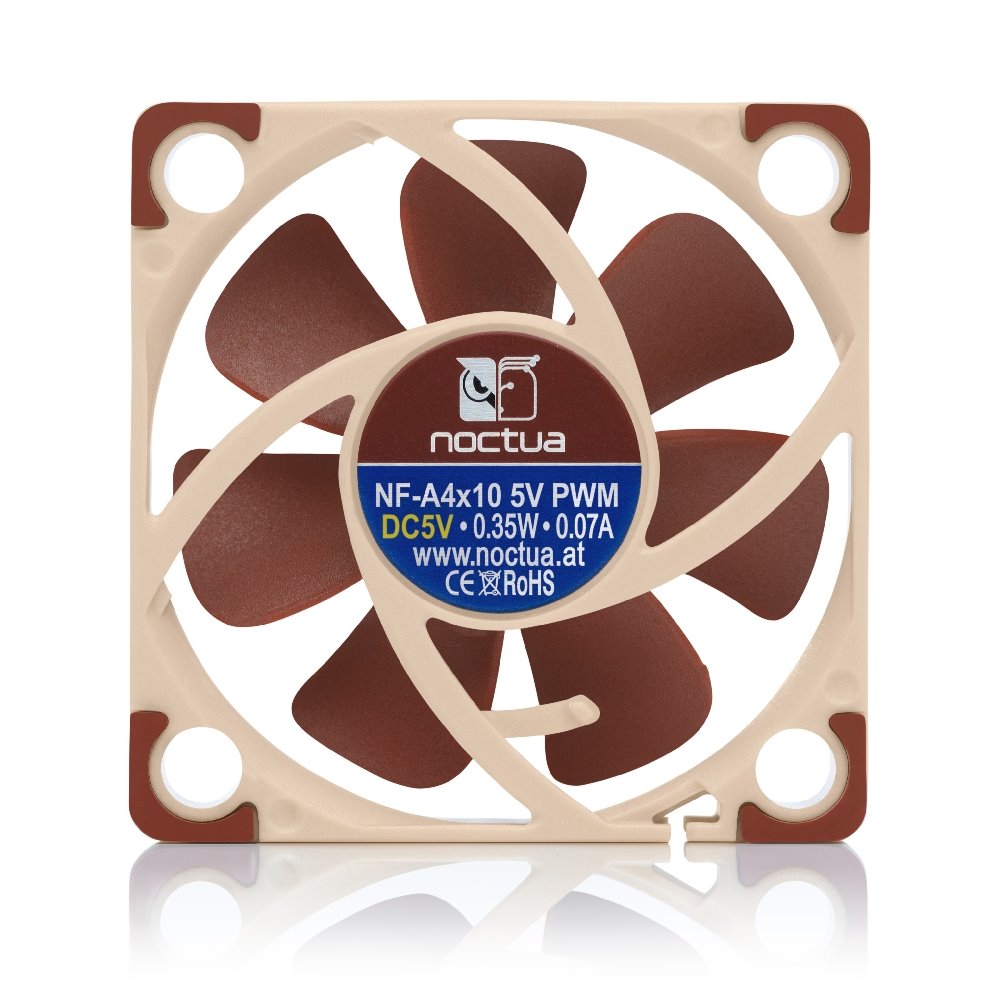

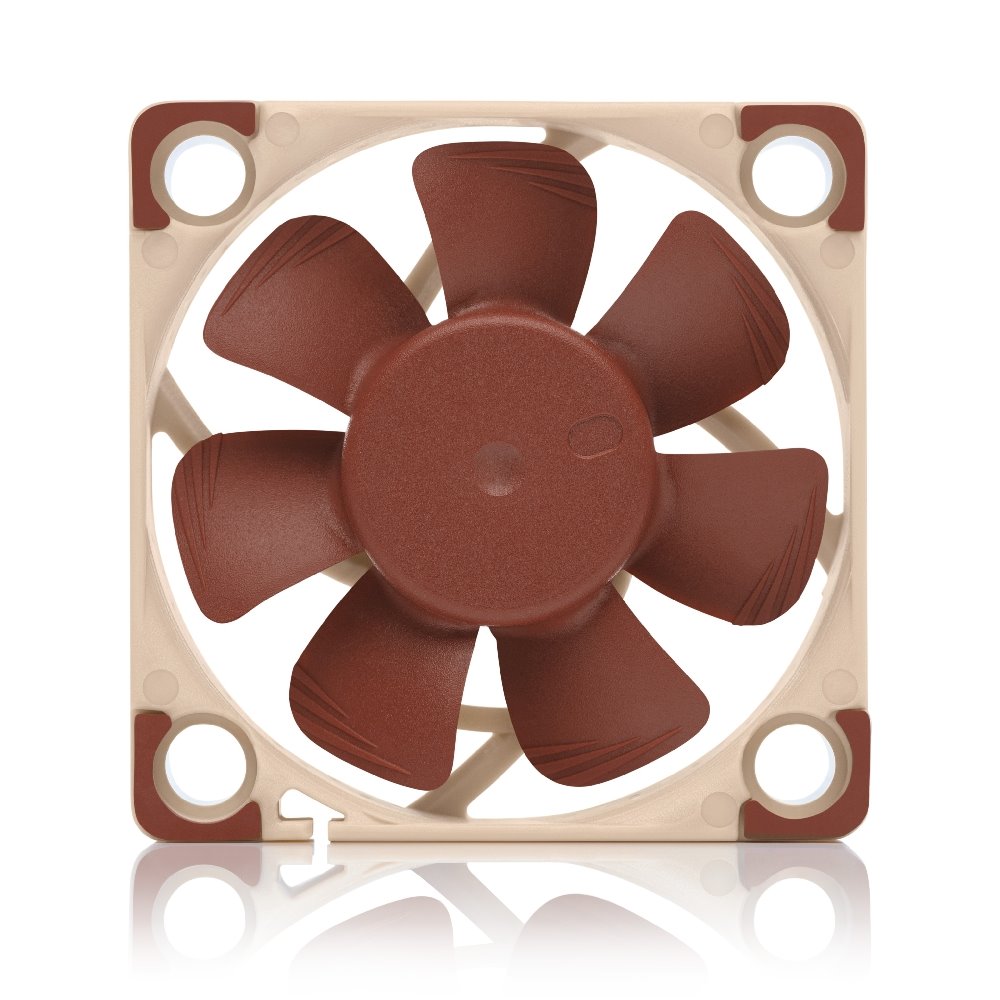

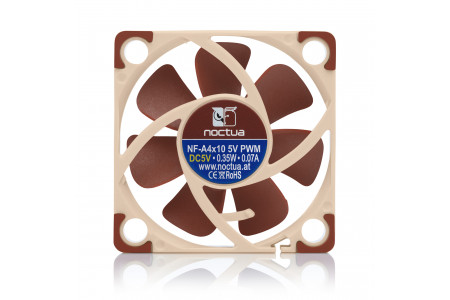

Noctua NF-A4x10 5V PWM

Popis produktu:

Díky pokročilému aerodynamickému designu Flow Acceleration Channels a AAO rámu se NF-A4x10 5V PWM stává špičkovým ultratichým ventilotárem o velikosti 40x10 mm. Technologie Smooth Commutation Drive a prvotřídní ložiska SSO2 garantují tichý chod a dlouhotrvající stabilitu.

Size  40x40x10 mm
Bearing  SSO2
Blade Geometry  A-Series with Flow Acceleration Channels
Frame Technology  AAO (Advanced Acoustic Optimisation)
Max. Input Power/Operating Voltage 0,25W/5V
MTBF > 150.000 h


NF-A4x10 5V                                 w/o adaptor
Max. Rotational Speed (+/-10%)   5000 RPM
Max. Airflow                                   8.9 m3/h
Max. Acoustical Noise                   19.6 dB(A)
Max. Static Pressure                      1.95 mmH2O
weight: 179 g



5V PWM version
Many devices such as network or storage solutions use 5 volt 40mm fans with PWM speed control. With the same operating voltage, PWM support and the included OmniJoin™ adaptor set that makes it compatible with proprietary fan headers, the NF-A4x10 5V PWM is ideal for replacing noisy or broken 5V 40mm fans with PWM.

Flow Acceleration Channels
The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

Reduced Motor Hub Size
Thanks to its streamlined, compact motor design, the NF-A4x10’s motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10’s superior airflow and pressure performance.

AAO Frame
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.

Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

Smooth Commutation Drive 2
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A4x10 remarkably quiet even at very close distance.

SSO2 Bearing
The NF-A4x10 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Polarity Protection
As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you’re on the safe side if you accidentally connect it with reverse polarity.

OmniJoin Adaptor Set
Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 comes with Noctua’s OmniJoin Adaptor Set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x10 to proprietary fan headers!

Extensive Cabling Options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.

EAN: 9010018100327
