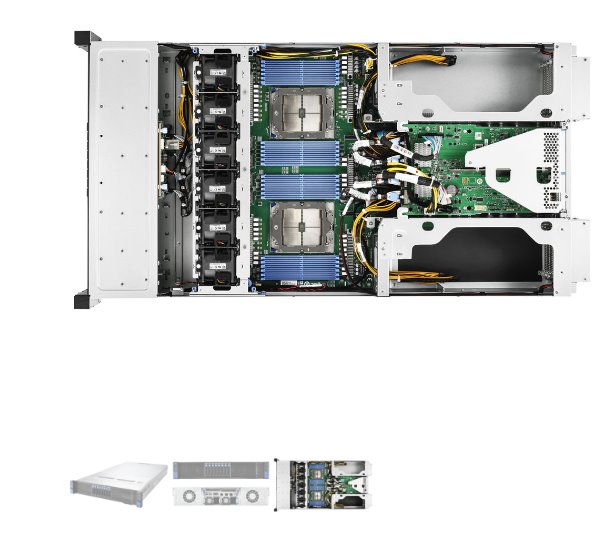

Mitac / TYAN B8261T85E8HR-2T-N-HE 2U2S 4GPU AI Server, 8 NVMe U.2 6 x hot-swap FAN, 2x rear FAN, 6x PCIe Gen 5 x16 slots








  • Mitac / TYAN B8261T85E8HR-2T-N-HE 2U2S 4GPU AI Server, 8 NVMe U.2 6 x hot-swap FAN, 2x rear FAN, 6x PCIe Gen 5 x16 slots










Kód:
M7B8261T85E8HR2TNHE
P/N:
B8261T85E8HR-2T-N-HE 2U2S
Výrobce:

Tyan





ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:

B8261T85E8HR-2T-N-HE Specifications

System Form Factor 2U Rackmount
Chassis Model TN85
Dimension (D x W x H) 33.46" x 17.63" x 3.43" (850 x 448 x 87mm)
Motherboard Name S8261GM2NE-2T #
Motherboard Notification # The motherboard not sold separately
Gross Weight 39.2 kg (86.42 lbs)
Net weight 29.2 kg (64.37 lbs)
Front Panel Buttons (1) PWR w/ LED / (1) UID / (1) RST
LEDs (1) ID / (2) LAN / (1) Warning
I/O Ports (2) USB 3.2 Gen.1 ports
Processor Q'ty / Socket Type (2) AMD Socket SP5
Supported CPU Series (2) AMD EPYC™ 9004/9005 Series Processors
Thermal Design Power Wattage Max up to 500W* (TDP)
Memory Supported DIMM Qty (12)+(12) DIMM slots
DIMM Type / Speed RDIMM / RDIMM-3DS DDR5 6400 MT/s
Capacity Up to 6,144GB RDIMM DDR5 6400 memory
Memory channel 12 Channels per CPU
Memory voltage 1.1V
PCIe Expansion Slots PCIe (6) PCIe Gen 5 x16 slots
Pre-installed TYAN Riser Card (PCIe Gen.5) (1) M8261T85-LR32-2L riser card for (2) HH/HL PCIe 5.0 x16 slots / (1) M8261T85-L32T-2F riser card for (2) FH/FL PCIe 5.0 x16 slots / (1) M8261T85-R32T-2F riser card for (2) FH/FL PCIe 5.0 x16 slots
Storage Q'ty / Type (8) 2.5" Hot-Swap NVMe
Front Drive Bay Interface (8) NVMe U.2
Front Drive Backplane Support NVMe
Power Supply Type CRPS
Input Range AC 100-127V/14A / AC 200-240V/15.5A
Frequency 50/60 Hz
Output Watts 2,700 Watts
Efficiency 80 plus Titanium
Redundancy 1+1
Serviceability Hot-swap
Cooling Fan (6) 6cm hot-swap middle fans + (2) 8cm easy-swap rear fans
Networking Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X550-AT2
PHY Realtek RTL8211F
Storage NVMe Connector (U.2) (4) SFF-TA-1016 (MCIO 8x) for (8) front NVMe
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
I/O Ports USB (2) USB3.2 Gen.1 ports (@ front) / (2) USB3.2 Gen.1 ports (@ rear)
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10 GbE ports + (1) dedicated GbE for IPMI
Button ID Button / Power Button / Reset Button
TPM (Optional) TPM Support Please refer to our TPM supported list.
Interface SPI
System Monitoring Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Server Management Chipset Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.5/PnP/Wake on LAN / ACPI 6.4 / ACPI sleeping states S0, S5
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
Regulation FCC (SDoC) Class A
CE (DoC) Class A
OS Compatibility OS supported list Please refer to our compatibility support lists
RoHS RoHS 6/6 Compliant Yes
Package Contains Barebone (1) TN85-B8261 Barebone
Manual (1) Quick Installation Guide
