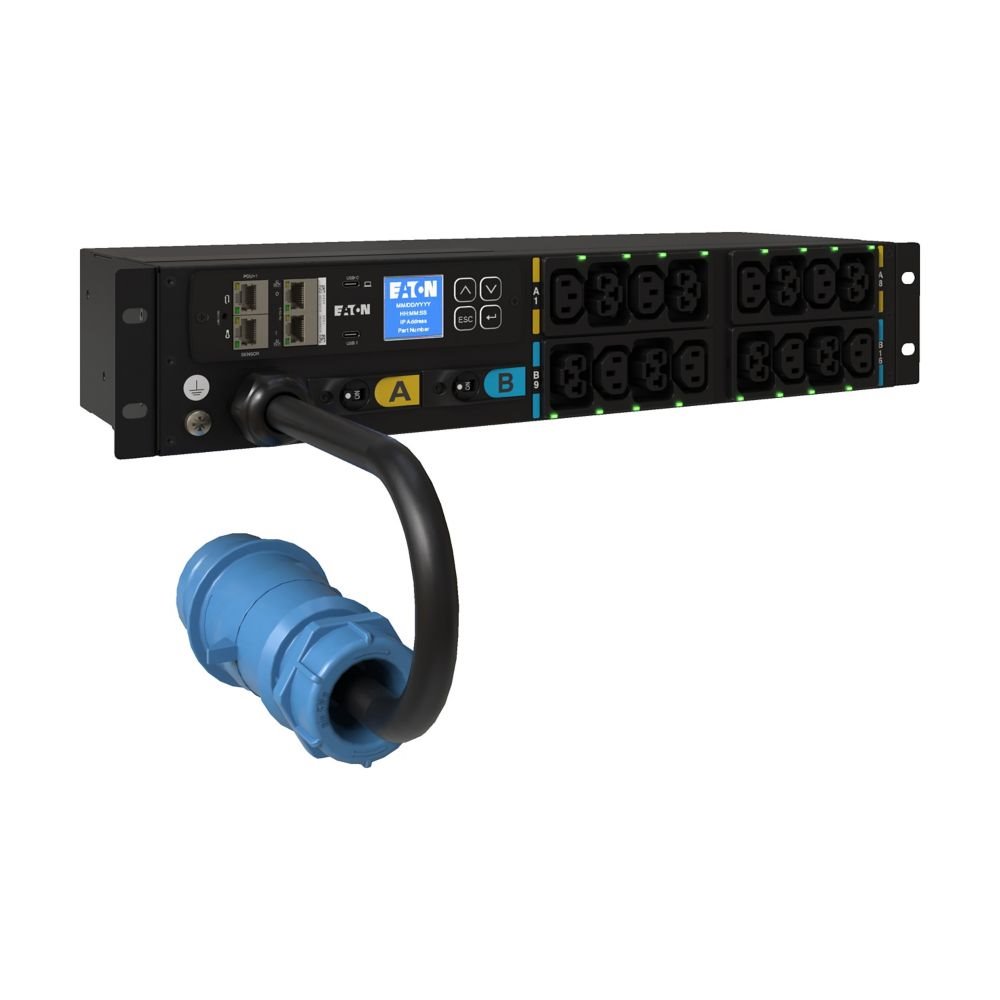

EATON ePDU G4: Řízené IEC 2U horizontální, In: IEC60309 32A 1P - Out: 8xC13,8xC39

Popis produktu:

EHMAF132K
PDU G4 MA 2U 309 32A 1P 8xC13,8xC39
Eaton Managed G4 Rack PDU, 2U, 32A, IEC60309 input, 3m cord, 1ph, 7.4 KW, 100-240V,16 outlets (8)C13, (8)C39

Obecné specifikace
Product Name
Eaton Rack PDU G4
Catalog Number
EHMAF132K
EAN
3553340697562
Product Length/Depth
175 mm
Product Height
88.3 mm
Product Width
444.5 mm
Product Weight
5.05 kg
Compliances
LVD Directive
EMC Directive
RoHS Directive
WEEE Directive
Packaging Directive
Certifications
IEC 62368-1
EN IEC 63000
CE
EAC
Cm
Ukr
IEC/EN 61000-6-2
IEC/EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
Model Code
PDU G4 MA 2U 309 32A 1P 8xC13,8xC39
Additional information
Color
Black
Material
Steel & Aluminium
Operating Temperature
0° to 60°C (32° to 140°F)
Electrical input
Amperage Rating
32 A
Circuit breaker
(2) single-pole
Cord length
3m
Frequency rating
50/60 Hz
Input connection
IEC-60309 32A 1Ph
Input voltage
200-240V / 346-415V
Phase
Single-phase
Electrical output
Number of outlets with earth pin
16
Number of outputs (other)
8
Number of Outputs C13
8
Outlets
(8) C13, (8) C39
Technology & communications
Communication
Yes
Ethernet interface
Yes
Mass configuration
Yes
Outlet control
Yes
Serial interface
Yes
SNMP
Yes
Special features
Remote Site Management
Versatile C39 outlet supports C14 or C20 power cord plug
High retention outlets designed to securely fit standard power cords and support P-Lock power cords
Cybersecurity standards UL 2900-1 and IEC 62443-4-2
Hot-Swap network control module
Network Cascading, connect up to 32 PDUs via network loop
Power sharing between two network modules PDUs ensures constant access to PDU data & sensors
1% IEC Class 1 billing grade measurement accurancy
Gigabit network card with 2x Gb ports
Support protocols RestAPI, Modbus TCP, SNMP, LDAP, HTTPS
Optional sensor Temperature/Humidity
PDU energy consumption
Outlet control on/off
reboot and sequential start-up
Type
Managed Rack PDU
