Broadcom MegaRAID 9562-16i, 8GB, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8654 x8, RAID 0-60, OCP 3.0 (PCIe 4.0 x8), SAS3916 ROC








  • Broadcom MegaRAID 9562-16i, 8GB, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8654 x8, RAID 0-60, OCP 3.0 (PCIe 4.0 x8), SAS3916 ROC










Kód:
CZ05-50137-00
P/N:
05-50137-00
Výrobce:

Broadcom

Záruka:
36 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:

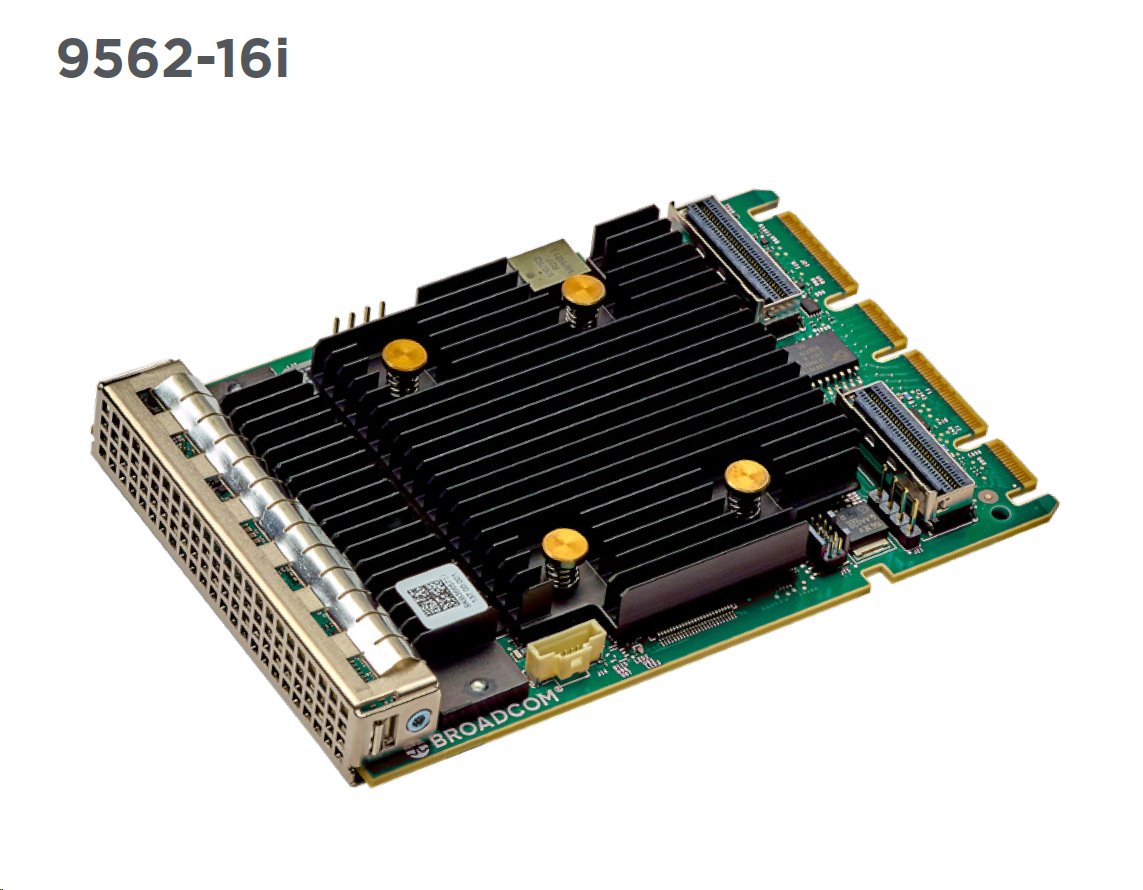

MegaRAID 9562-16i

PCIe Gen 4.0 Tri-Mode MegaRAID OCP 3.0 SFF adapter provides for more flexibility when integrating storage into the server

The 16-port OCP 3.0 SFF Tri-Mode 9562-16i NVMe/SAS/SATA RAID adapter enables more flexibility when integrating storage into the server.

The OCP RAID adapter enables the operation of NVMe, SAS or SATA devices in a single drive bay. By using an OCP slot for storage, users can free up a standard PCIe adapter slot for other uses.

  • Connects up to 1024 SAS/SATA devices or 32 NVMe devices
  • Provides maximum connectivity and performance for high-end servers and applications
  • Support critical applications with the bandwidth of PCIe 4.0 connectivity
  • Universal Bay Management (UBM) Ready
  • SFF-9402 compliant connector pinout
Product Manufacturer Part # What's in the Box
MegaRAID 9562-16i 05-50137-00 MegaRAID 9562-16i adapter
Specification Value
Lifecycle Active
Distributor Inventory No
Brackets Internal Lock
Cache Memory 8GB
Cache Protection CacheVault CVPM05
Connectors 2x8 SFF-8654 (Vertical)
Data Transfer Rates 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported SAS/SATA: 1024, NVMe: 32
Generation 12 Gb/s
Host Bus Type x8 lane PCI Express 4.0
I/O Processor / SAS Controller SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
Internal Ports 16
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF >3,000,000 hours at 40° C
OCP Thermal Tier Tier 5
Operating Temperature°C 0°C to 55°C
OS Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions 115.00 (+/-0.13) mm x 76.00 (+/-0.13) mm
RAID Levels 0, 1, 10, 5, 50, 6, 60
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power 13W
Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba


Stránky o produktu:

https://www.broadcom.com/products/storage/raid-controllers/megaraid-9562-16i











Související dokumenty




Datasheet EN:  Broadcom_9500-TM-HBA-OCP-PB101.pdf
