WS ASUS EC Pro ET900A X9, sTR5, 8xDDR5, 7xPCIe, 4x2.5"/3.5", 2xSlim SAS, 4xM.2, 1x10Gb LAN, 2000W, Tower 3U

Kód:

TSET900AX9WOCPU011Z

P/N:

90WS0022-M000J0

Výrobce:

ASUS

PRA - Sklad Praha,

BRA - Sklad HL Bratislava,

EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka

GPSR

Kontakt:
Asus Computer GmbH
Harkortstraße 21 - 23, 40880 Ratingen, Germany
https://www.asus.com/de/

Podrobnosti o produktu

Popis produktu:

Model

ExpertCenter Pro ET900A X9

Operating System

Windows 11 Pro, Windows 11 Pro for Workstations

Processor / System Bus

AMD Socket sTR5
AMD RYZEN™ Threadripper™ PRO 7000 WX-Series Processors*
*Refer to www.asus.com for CPU support list.

Core Logic

AMD WRX90 Chipset

Memory

Total Slots:
8 (8-channel)
Memory Type:
DDR5 4800/5600 MHz, ECC RDIMM
Memory Size:
64GB, 48GB, 32GB, 24GB, 16GB, 8GB ECC RDIMM
* Refer to product QVL for more information
* Actual memory frequency differs from AMD
CPU types and memory module. Please check AMD official site for more detail about the memory types supported by each CPU.

Expansion Slots

Total: 7
Location-1: PCIe x16 slot (Gen5 x16 link)
Location-2: PCIe x16 slot (Gen5 x16 link)
Location-3: PCIe x16 slot (Gen5 x16 link)
Location-4: PCIe x16 slots (Gen5 x16 link)
Location-5: PCIe x16 slots (Gen5 x16 link)
Location-6: PCIe x16 slots (Gen5 x8 link)
Location-7: PCIe x16 slots (Gen5 x16 link)

Storage

Storage Controller:
AMD RYZEN™ Threadripper™ PRO 7000 WX-Series
Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device
SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

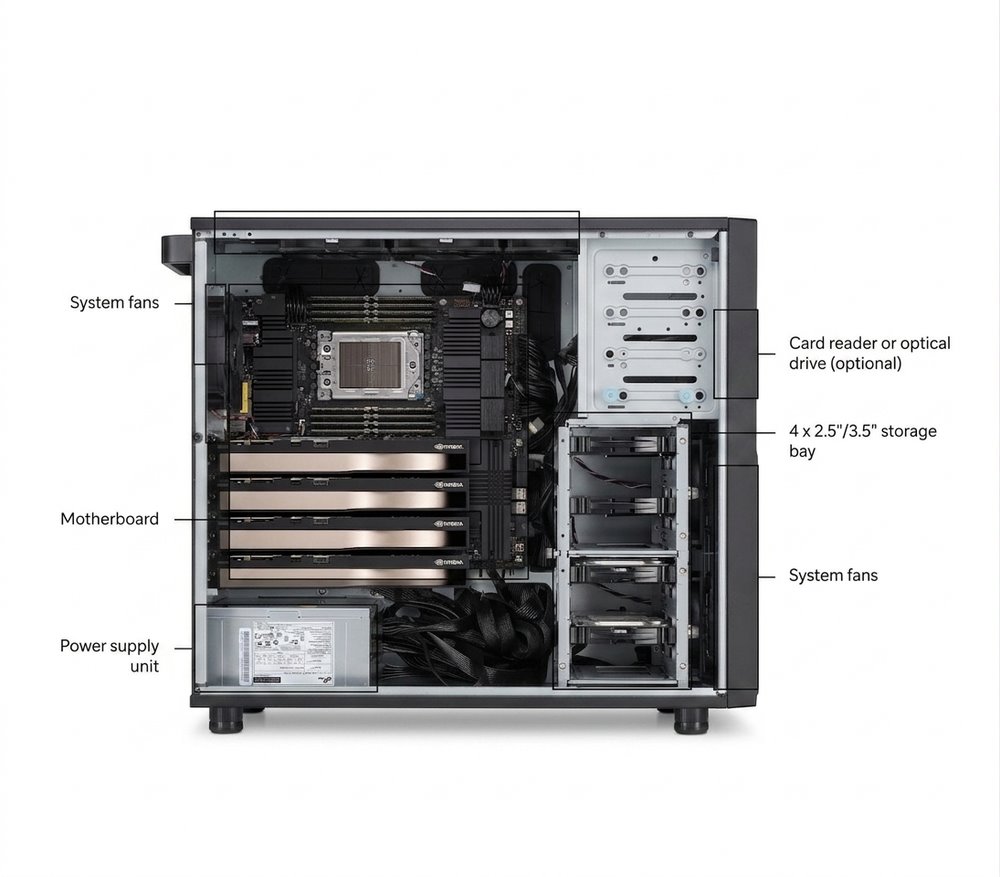

Drive Bays

4 x internal 3.5"/2.5" storage bays

Auxiliary Storage FDD/CD/DVD

1 x 5.25” media bay for optional DVD-RW Slim optical drive and card reader

Networking

1 x Intel^® dual 10Gb Ethernet

Graphic

Supports Up to 4 2-slot NVIDIA® graphics cards, including but not limited to
NVIDIA® RTX 6000 ADA 48GB
NVIDIA® RTX A4000 16GB
NVIDIA® RTX 2000 ADA 16GB
NVIDIA® RTX A2000 12GB
2 x USB 40Gbps (USB4®) ports at back panel to support USB Type-C® display outputs*
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Output at USB4® Type-C® 40G USB 1 or USB4® Type-C® 40G USB 2 ports, each requires a Mini DisplayPort IN to DisplayPort adapter cable.
For more information on display connection and video output configuration using the Mini DisplayPort IN ports, please
refer to the user manual.
*** Pro ET900A X9 does not include integrated graphics capability. A discrete graphics card is required for
display output.
**** To ensure optimal stability, an ambient temperature of under 25°C is recommended during heavy workloads.

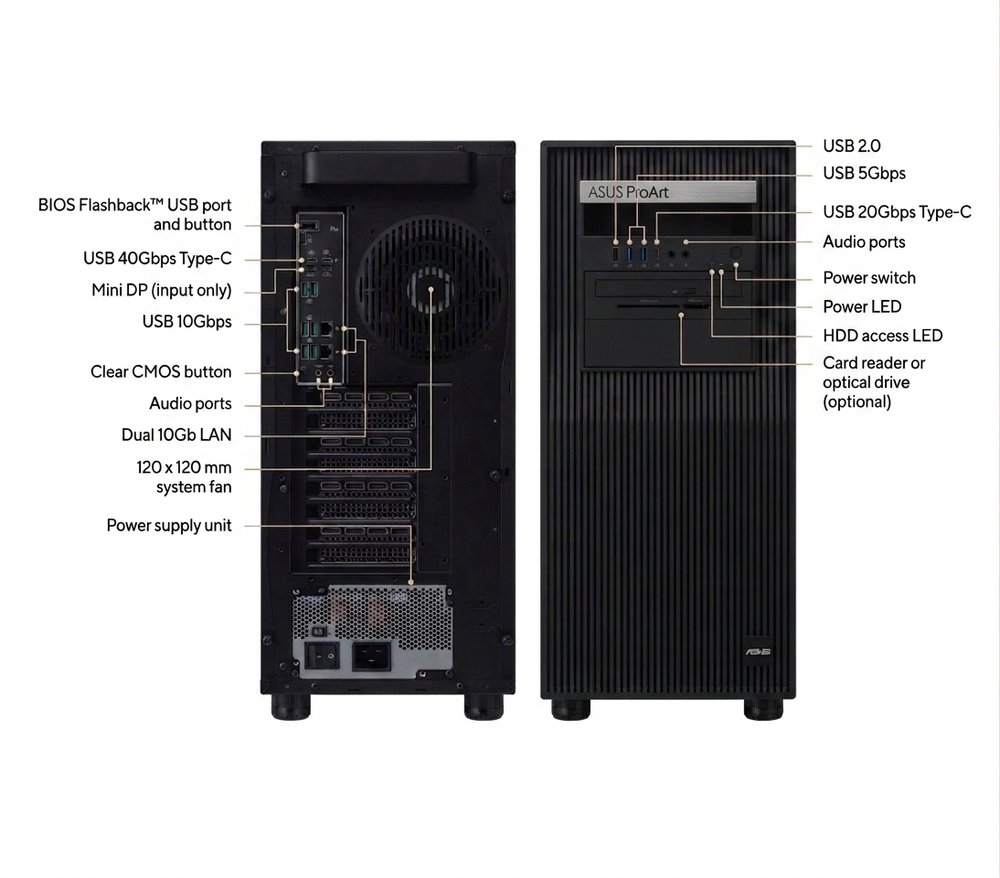

Front I/O Ports

1 x USB 20Gbps Type-C® port (15W, 5Vdc/3A)
2 x USB 5Gbps ports
1 x USB 2.0 port
1 x Headphone port
1 x Microphone port

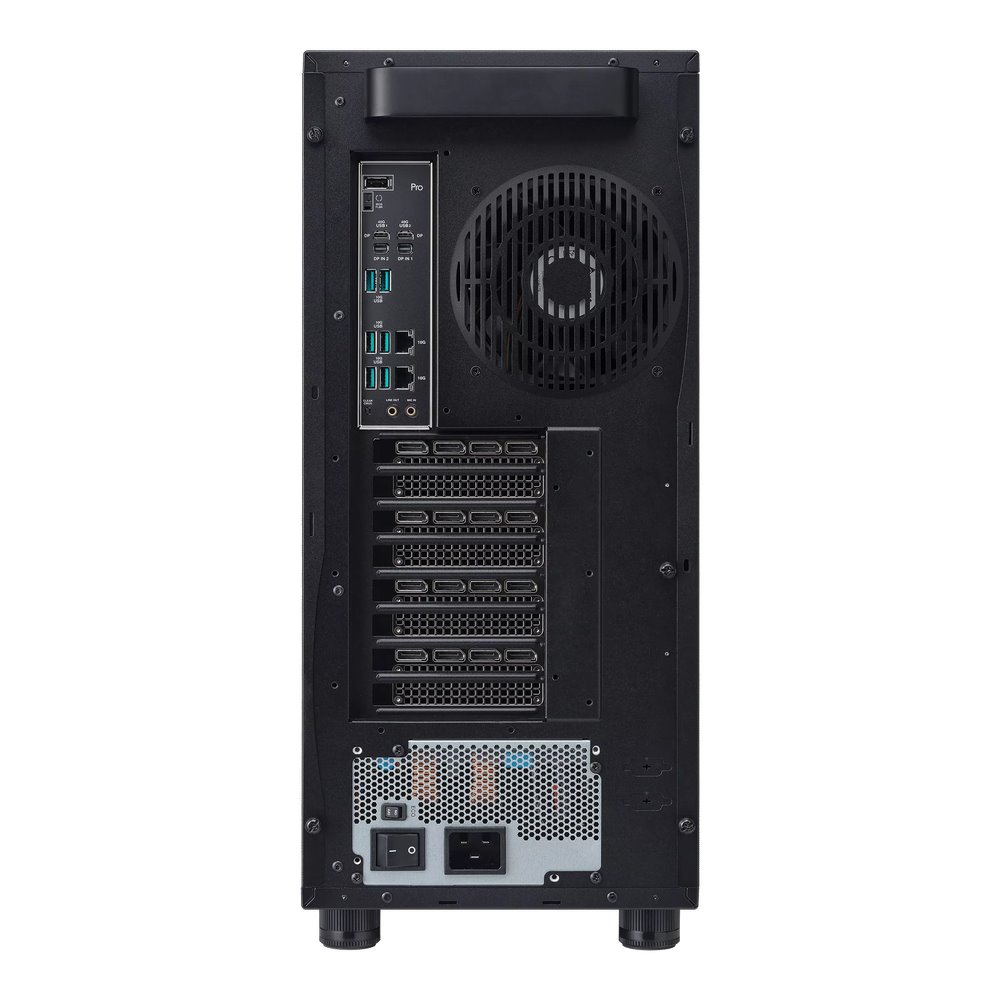

Rear I/O Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C®) (15W, 5Vdc/3A)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
2 x Mini DisplayPort in
2 x RJ-45 LAN ports
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Switch/LED

Front:
1 x Power Switch/LED
1 x HDD Access LED
Rear:
1 x BIOS FlashBack™ button/LED
1 x Clear CMOS button
Internal:
Q-Code
Q-LEDs (CPU; DRAM; VGA; BOOT)
FlexKey button
LN2 mode
ReTry button
Safe boot button
Start button

Management Solution

ASUS Control Center Express

Regulatory Compliance

BSMI, CE, FCC, Energy Star

Dimensions

532mm x 243mm x 582mm
21.0” x 9.5” x 22.9”

Weight

Net Weight: 31.490 kg
Gross Weight: 37.570 kg

Power Supply

1650W 80 PLUS PLATINUM single power supply
(200-240Vac, 10A, 50-60Hz)
2000W 80 PLUS GOLD single power supply
(100-240Vac, 15-12A, 60-50Hz)
2000W@200-240Vac, 1500W@115-200Vac, 1200W@100-115Vac

Environment

Operation temperature: 10? ~ 35?
Operation temperature: 10? ~ 35?
Non operation humidity: 20% ~ 90% (Non condensing)

Optional Items

Smart card reader
Anti-Virus CD pack
OS
DVD-ROM
Keyboard and mouse
COM port cable

Stránky o produktu:

https://www.asus.com/displays-desktops/workstations/performance/expertcenter-pro-et900a-x9

Parametry

Základní parametry
Formát:	3U
Počet paměťových slotů:	8
Procesor:	AMD
Provedení:	Tower
Rozměr disků:	2.5", 3.5", M.2
Socket:	sTR5
Typ paměti:	DDR5
Typ řadiče:	SATA, M.2, Slim SAS
Zdroj:	2000

Zařazení produktu

Počítače - Workstation

Související dokumenty

User Guide:

ExpertCenter Pro ET900A X9 Manual.pdf
