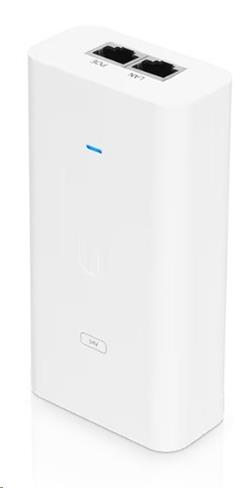

Ubiquiti EdgePoint PoE Injector, 54VDC, 80W








  • Ubiquiti EdgePoint PoE Injector, 54VDC, 80W










Kód:
UB2POE54V80WEU
P/N:
POE-54V-80W-EU
Výrobce:

Ubiquiti

Záruka:
24 Měsíců



ks.


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
Ubiquiti International Holding B.V.
Ekkersrijt 3102. Son en Breugel, 5692 CC. Netherlands
legal@ui.com
  •


Podrobnosti o produktu





Popis produktu:

Technical Specification
POE-54V-80W
Dimensions 123 x 65 x 34 mm (4.8 x 2.6 x 1.3”)
Weight 299 g (10.6 oz)
Output voltage 54V DC @ 1.5A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.8A @ 120V AC, 0.4A @ 240V AC
Inrush current <80A Peak @ 120V AC, <120A Peak @ 230V AC
Efficiency 87+%
Output ripple 1% Max.
Switching frequency 100 kHz Max.
Line regulation ? 3%
Load regulation ? 5%
2-pair powering –
4-pair powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 µs) power
Peak pulse current 36A (10/1000 µs) data
Shunt capacitance <5 pF data
Response time <1 ns
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 35 to 95% noncondensing
Certifications CE, FCC, IC, UL


Stránky o produktu:

https://eu.store.ui.com/eu/en/products/poe-54v-80w
