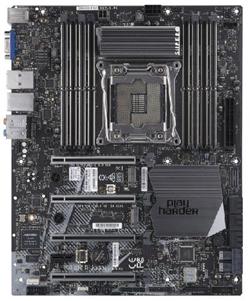

SUPERMICRO MB 1xLGA2066, x299, 8x DDR4,6xSATA3, 5xPCIe 3.0(depending on CPU), M.2, 2xLAN, HD Audio, VGA, IPMI

Popis produktu:

Product SKUs

MBD-C9X299-PGF  C9X299-PGF



Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.48cm x 24.38cm)



Processor/Cache

CPU Intel® 10th Generation Core? i9 Extreme X-series, Intel® 7th Generation Core? i7 X-series, Intel® 9th Generation Core? i7 X-series, Intel® 9th Generation Core? i9 X-series, Intel® Core? i9 Extreme X-series Processor
Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
Support Intel Skylake-X refresh CPU



System Memory

Memory Capacity 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots

Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® X299

SATA 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500
***OOB Bios refresh function is not supported.***

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Aquantia 5G LAN chip AQC108

Audio ALC 1220 HD Audio



Input / Output

 LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 4 USB 2.0 ports (4 via headers)
4 USB 3.2 Gen1 ports (2 rear + 2 via headers)
4 USB 3.2 Gen2 ports (3 Type A, 1 Type C)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 4 PCI-E 3.0 x16,
1 PCI-E 3.0 x1
***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots***

M.2 M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key (RAID 0,1 support)
M-Key for SSD and Optane



System BIOS

BIOS Type UEFI 128Mb



Management

Software SuperDoctor® 5, Watchdog



PC Health Monitoring

Voltage +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT

FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors

Temperature N/A

LED N/A

Other Features ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9X299-PGF 1 C9X299-PGF Motherboard
IO shield MCP-260-00117-0N 1 C9X299-PG IO Shield
SATA cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF




Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9655V 1
TPM security module (optional, not included) AOM-TPM-9655V-C 1
TPM security module (optional, not included) AOM-TPM-9665V-FC 1
TPM security module (optional, not included) AOM-TPM-9665V 1
TPM security module (optional, not included) AOM-TPM-9665V-C 1



Chassis  (Optimized for C9X299-PGF)


Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
              SCGS5A-754K



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for C9X299-PGF)

Server Name

SYS-5039AD-I
