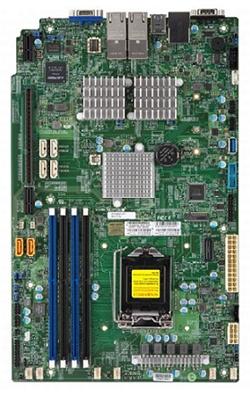

SUPERMICRO MB 1xLGA1151, iC236,DDR4,6xSATA3,PCIe 3.0 ((left:)1 x16(in WIO);(right:)1 x4(in x16)),1x M.2 NGFF,IPMI, 4xLAN








  • SUPERMICRO MB 1xLGA1151, iC236,DDR4,6xSATA3,PCIe 3.0 ((left:)1 x16(in WIO);(right:)1 x4(in x16)),1x M.2 NGFF,IPMI, 4xLAN










Kód:
SRX11SSW4TF
P/N:
MBD-X11SSW-4TF-O
Výrobce:

SUPERMICRO základní desky

Záruka:
36 Měsíců



ks.


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:


Product SKUs

MBD-X11SSW-4TF  X11SSW-4TF



Physical Stats

Form Factor Proprietary

Dimensions 8" x 13" (20.32cm x 33.02cm)



Processor/Cache

CPU Intel® 6th/7th Generation Core? i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 80W TDP

Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series



System Memory

Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C236

SATA Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2400 BMC

Network Controllers Quad LAN with Intel® X540 10GBase-T Ethernet Controller

Graphics Aspeed AST2400 BMC



Input / Output

SATA 6 SATA3 (6Gbps) ports

LAN 4 RJ45 10GBase-T ports

USB 6 USB 2.0 ports (2 rear + 4 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)


TPM TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16 Left Riser Slot

M.2 M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key
Double Height Connector



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features ACPI 1.0 / 2.0 / 3.0 / 4.0
APM 1.2
DMI 2.3
Hardware BIOS Virus protection
PCI 2.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
SMBIOS 2.7.1
UEFI 2.3.1
USB Keyboard support



Management

Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT

FAN 6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

LED UID/Remote UID, CPU / System Overheat LED

Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Stránky o produktu:

https://www.supermicro.com/en/products/motherboard/X11SSW-4TF











Parametry





Základní parametry
Určení:  Servery
Formát:  Speciální
Herní:  NE

Socket
Patice (CPU Socket):  LGA 1151
Výrobce čipsetu:  Intel
Čipová sada:  Intel C236 Chipset
Počet CPU socketů:  Single socket

Grafická karta
Integrovaná grafická karta:  ANO

Paměť
Typ paměti:  DDR4
Počet paměťových slotů:  4
Maximální frekvence paměti [MHz]:  2400
Podpora ECC:  ANO
M.2 slot:  1

Sběrnice
PCI Express x16:  1
Integrovaný řadič SAS/SATA:  Ne
