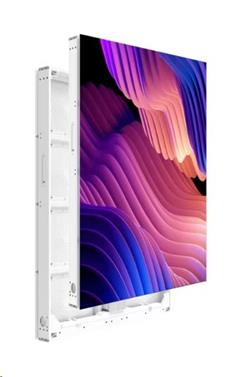

HiSense DISPLAY XOM100A HSN

Popis produktu:

Pixel Pitch 10mm
Pixel Configuration SMD Gold Wire SMD2727
Module Resolution (W x H) 48 x 32
Module Dimension (W x H) 480 x 320mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H) 96 x 96 / 144 x 96 / 96 x 128
Cabinet Dimension (WxHxD)
960 x 960 x 106mm / 37.8 x 37.8 x 4.17 inch
1440 x 960 x 106mm / 56.7 x 37.8 x 4.17 inch
960 x 1280 x 106mm / 37.8 x 50.4 x 4.17inch
No. of Modules per Cabinet (WxH) 2 x 3 / 3 x 3 / 2 x 4
Cabinet Weight
24kg / 52.91lbs
37kg / 81.57lbs
35kg / 77.16lbs
Cabinet materials Profile Aluminium
Brightness (typ.) 6500 nits (5000~6500 nits adjustable)
Brightness (Customisable) 10,000 nits
Contrast Ratio 4000:1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V) 140° x 120°
Bit Depth 14 bit (14~16 bit customisable)
Colour Temperature 6500K + 500K
Max Power Consumption per Unit Area 780 W/m2
Avg Power Consumption per Unit Area 250 W/m2
Power Supply 100~240 V AC
Refresh Rate 1920Hz (3840Hz Customisable)
Operating Temp / Humidity -20~50°C / 10~90% RH
Storage Temp / Humidity -30~60°C / 10~90% RH
IP Rating Front IP65 & Rear IP65
Lifetime 100,000 Hrs
Certification CE, CB
Maintenance Front & Rear Access

Stránky o produktu:

https://www.hisense-b2b.com/en/xom-series-outdoor-led-display
