Broadcom MegaRAID 9540-2M2, 2x slot M.2 pro NVMe (PCIe 4.0 x4)/SATA (6Gb/s) disky, RAID 0, 1, PCIe 4.0 x8








  • Broadcom MegaRAID 9540-2M2, 2x slot M.2 pro NVMe (PCIe 4.0 x4)/SATA (6Gb/s) disky, RAID 0, 1, PCIe 4.0 x8
  • Broadcom MegaRAID 9540-2M2, 2x slot M.2 pro NVMe (PCIe 4.0 x4)/SATA (6Gb/s) disky, RAID 0, 1, PCIe 4.0 x8










Kód:
CZ05-50148-00
P/N:
05-50148-00
Výrobce:

Broadcom radice/HBA

Záruka:
36 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:

MegaRAID 9540-2M2

Reliable boot solution that supports two M.2 NVMe or SATA drives enables users to separate OS drives from primary data drives

The MegaRAID® 9540-2M2 adapter provides a reliable boot solution based on the Broadcom® second-generation PCIe Gen 4.0 Tri-Mode SAS3808 I/O controller. The 9540-2M2 adapter supports two M.2 NVMe or SATA drives, enabling users to separate their OS drives from their primary data drives. By taking advantage of the unified Broadcom tool suite, users familiar with the Broadcom standard RAID and HBA controllers can easily integrate the 9540-2M2 adapter into their existing management application suite.

The 9540-2M2 is a low profile, half-length adapter fitting into a standard PCIe slot with two on-board M.2 drives. Customers who trust hardware RAID for critical data can expand this trust to their OS drives. There is no need to sacrifice two drive bays that can be used for user data. The 9540-2M2 adapter enables RAID 0 and RAID 1 using the trusted Broadcom MegaRAID stack.

The 9540-2M2 adapter takes advantage of the Broadcom Tri-Mode SerDes technology enabling the most flexibility for customers by supporting NVMe or SATA M.2 drives for OS boot applications. The adapter detects the drive type and negotiates between speeds and protocols to automatically recognize and work with either NVMe or SATA M.2 drives.

Key features include:

  • RAID 0, 1
  • Support critical, high-bandwidth applications with PCIe 4.0 connectivity

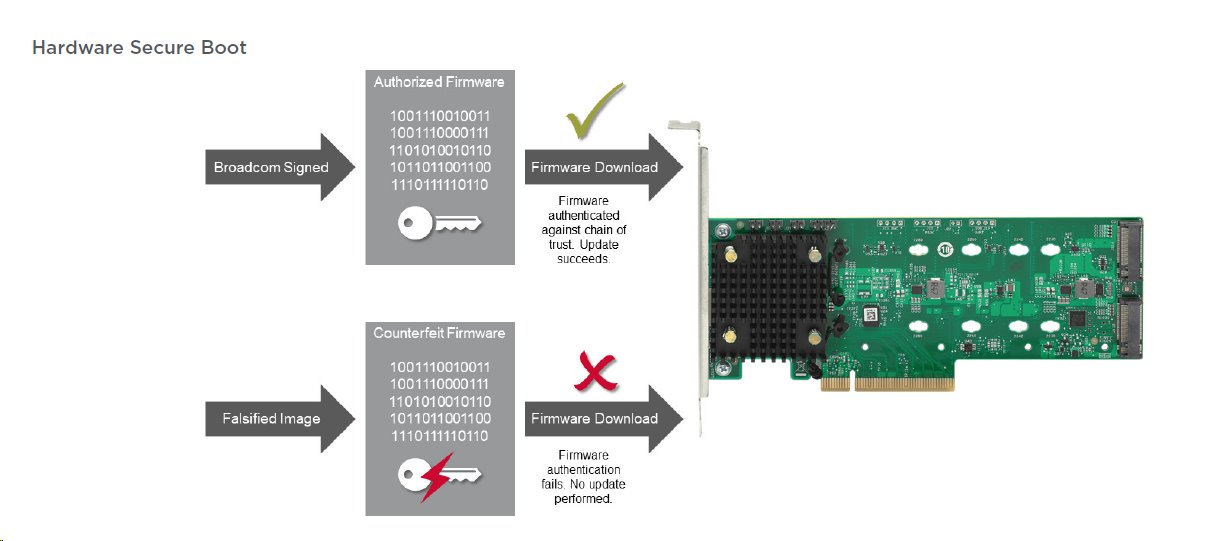

  • Advanced security through hardware secure boot
  • Drive activity LED
Product Manufacturer Part # What's in the Box
MegaRAID 9540-2M2 05-50148-00 MegaRAID 9540-2M2



Specification Value
Lifecycle Active
Distributor Inventory No
Data Transfer Rates 6Gb/s SATA and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported M.2 SATA or NVMe SSDs
Generation PCIe Gen 4
Host Bus Type x8 lane PCI Express 4.0
I/O Processor / SAS Controller SAS3808
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF > 5,000,000 hours at 40° C
Operating Temperature°C 0°C to 55°C
OS Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions 167.51 (+/-0.13) mm x 68.77 (+/-0.13) mm
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
