ASUS MB P7F-M/WS 1x LGA1156, i3420, 4xRAM DDR3, 6x SATA, 2xPCI-E, 2x PCI, bez VGA, mATX

Popis produktu:

Specifications
Processor / System Bus 1 x Socket 1156
Quad/Dual Core Intel Xeon 3400 series Server Processor
Quad Core Intel Core i7-800 series Desktop Processor?
Quad/Dual Core Intel Core i5/ i3 series Desktop Processor?
?Refer to www.asus.com for CPU Support List

Core Logic Intel® 3420 PCH

Form Factor MicroATX
9.6" x 9.6"
ASUS Features Rack Ready (Rack and Pedestal dual use)
FAN speed control

Memory Total Slots: 4 (2-channel) (Desktop processors and Xeon L3406 don't support RDIMM)
Capacity: Maximum up to 32GB (RDIMM); Maximum up to 16GB (UDIMM )
Memory Type: DDR3 1066/1333 ECC UDIMM; DDR3 800/1066/1333 RDIMM (Refer to www.asus.com for detail memory AVL & non ECC UDIMM vs CPU support list)
Memory Size: 1GB 2GB 4GB 8GB (RDIMM)/ 1 GB, 2GB, 4GB (UDIMM)
Expansion Slots (follow SSI Location #) Total PCI/PCI-X/PCI-E Slots: 4
Slot Location 4: 1 * PCI 32bit/33 MHz
Slot Location 5: 1 * PCI 32bit/33 MHz
Slot Location 6: 1 * PCI-E x16 (x16 link)
Slot Location 7: 1 * PCI-E x8 (x4 link) (MIO supported)

Storage SATA Controller:
Intel® 3420:
6* SATA2 300MB/s ports -
Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5(Windows)

Networking LAN: 2 * Intel 82574L
Onboard I/O Connectors  1 x 20-1 Pin TPM Header
1 x PSU Connector 24-pin ATX power connector + 8-pin ATX 12V power connector
2 x USB Connectors (support 4 USB ports)
1 x Fan Header 5* 4pin

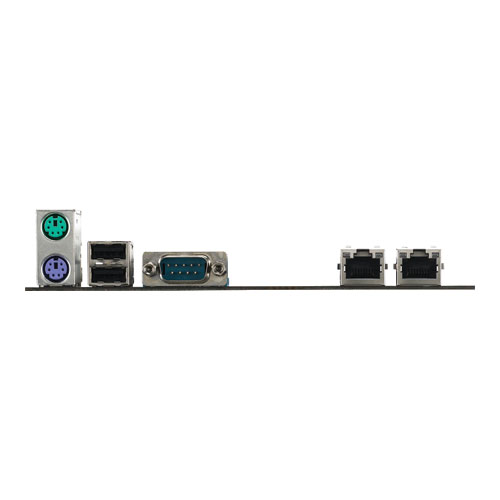

Rear I/O Connectors 1 x External Serial Port
2 x External USB Port
2 x RJ-45
1 x PS/2 KB/Mouse
Monitoring CPU Temperature
FAN RPM
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)

Environment Operation temperature: 10? ~ 35? / Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% (Non condensing)
Accessories Standard Gift Box Pack:
1 x User Guide
1 x Support CD
1 x I/O shield
6 x SATA Cable
1 x ASUS MIO Audio Card
Product SKUs Standard Gift Box Pack with MIO

Note #Refer to ASUS Server AVL for latest update
?24 + 4 Pin Power Supply Ssupported
