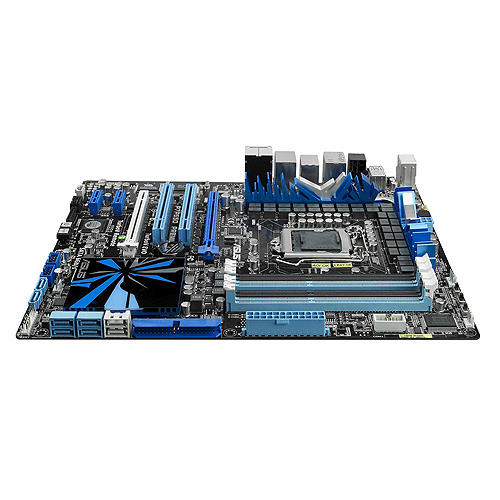

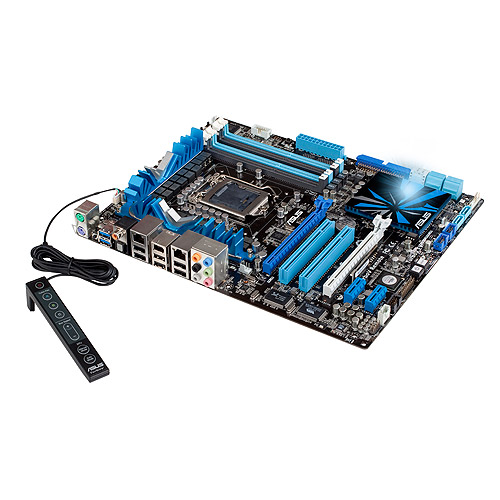

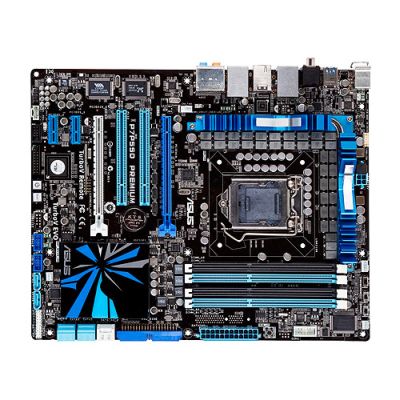

ASUS M/B P7P55D PREMIUM LGA1156 P55

Popis produktu:

Technické parametry
Procesor Procesory Intel® Socket 1156 Core™ i5 Processor/Procesor Core™ i7

Supports Intel® Turbo Boost Technology
Čipová sada Intel® P55 Express Chipset
Paměť 4 x DIMM, Max. 16 GB, DDR3 2200(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered
Paměť
Architektura paměti Dual Channel
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
*Refer to www.asus.com or the user manual for the Memory QVL(Qualified Vendors Lists).
Rozšiřující sloty 2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode)
2 (2.5GT/s)
2 x PCI
Podpora více GPU Supports NVIDIA® Quad-GPU SLI™ Technology
Supports ATI® Quad-GPU CrossFireX™ Technology
Úložiště Intel® P55 Express Chipset built-in
6 xSATA 3.0 Gb/s porty
Intel Matrix Storage Technology Podpora RAID 0,1,5,10
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
Marvell® 88SE9123 SATA controller:
- 2 x SATA 6.0 Gb/s ports (gray)
LAN Dual Gigabit LAN controllers Realtek® 8112L / 8110SC Gigabit LAN controller featuring AI NET2 and Teaming
Zvuk VIA® VT2020 10-mi kanálový High Definition Audio CODEC
- Absolute Pitch BD192/24 featuring ENVY HD
- DTS Surround Sensation UltraPC
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O
IEEE 1394 VIA® 6308P controller supports 2 x 1394a porty (one at mid-board; one at back panel)
USB 12 USB 2.0 portů (4 ports at mid-board, 8 ports at back panel)
Jedinečné funkce ASUS ASUS Hybrid Processor - TurboV EVO
- Auto Tuning, TurboV and Turbo Key
- TurboV Remote
ASUS 48 Hybrid Phase*
- T.Probe Technology for Active Cooling
- 32+3 Phase Power Design
- 100% Ultra Long Life Japan-Made Solid Capacitors
*48 Hybrid Phase = 32+3 Phase x T.Probe
ASUS Hybrid OS - Express Gate SSD
ASUS Xtreme Design
ASUS Exclusive Features
- MemOK!
- ASUS EPU
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 3+
- ASUS Fan Xpert
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Možnosti přetaktování Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vIMC: Adjustable IMC voltage at 0.00625V increment
- vDRAM Bus: 81-step DRAM voltage control
- vPCH: 2-step chipset voltage control
- vCPU_PLL: 4-step reference voltage control
Bezkrokové nastavování frekvence SFS (Stepless Frequency Selection)
- Nastavování frekvence PCI Express od 100MHz až do 200MHz s krokem 1MHz
- Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment
Ochrana pro přetaktování
- ASUS C.P.R.(CPU Parameter Recall - obnovení parametrů procesoru)

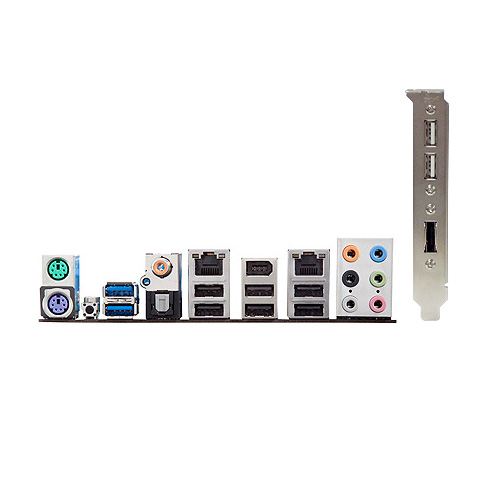

Porty na zadním panelu 1 x IEEE 1394a
2 x RJ45 port
8 x USB 2.0/1.1
10 -mi kanálový zvuk
1 x PS/2 Keyboard port (Purple)
1 x PS/2 mouse port (Green)
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
1 x Clear CMOS switch
Interní I/O konektory 2 x USB konektory support additional 4 USB ports
1 x IDE konektor
1 x TPM connector
1 x IEEE 1394a konektor
1 x konektor pro větrák procesoru
1 x konektor pro napájení ventilátoru
1 x COM connector
6 x SATA 3.0Gb/s connectors (blue)
2 x SATA 6.0Gb/s connectors (gray)
2 x Chassis Fan connector (1x4-pin, 1x3-pin)
Front panel audio connector
1 x S/PDIF Out Header
1 x CD audio in
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
1 x TURBO_CON header (for TurboV Remote)
1 x MemOK! button
1 x Power on switch
1 x Reset switch
BIOS 16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,WOR by PME
Příslušenství Příručka uživatele
1 x UltraDMA 133/100/66 kabel
1 x TurboV Remote
2 x Serial ATA 6.0Gb/s cables
4 x Serial ATA 3.0Gb/s cables
1 x 2-port USB and eSATA module
ASUS Q-Shield
2 in 1 Q-connector
1 x ASUS SLI bridge connector
CD podpory Ovladače
ASUS Update
ASUS Utilities
Anti-virus software (OEM version)
Velikost Formát ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
