ASRock Rack EPYCD8 1x SP3, 8xDDR4 ECCreg, 9x SATA, 2x M.2(22110,2280), 7x PCIe3, 2x 10Gb LAN, IPMI








  • ASRock Rack EPYCD8 1x SP3, 8xDDR4 ECCreg, 9x SATA, 2x M.2(22110,2280), 7x PCIe3, 2x 10Gb LAN, IPMI
  • ASRock Rack EPYCD8 1x SP3, 8xDDR4 ECCreg, 9x SATA, 2x M.2(22110,2280), 7x PCIe3, 2x 10Gb LAN, IPMI










Kód:
AGEPYCD82TR32
P/N:
EPYCD8-2T/R32
Výrobce:

Asrock

Záruka:
36 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

Specifications

 MB Physical Status
Form Factor - ATX
Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm)
 Processor System
CPU - AMD EPYC™ 7002/7001 series processor family
Socket - Single Socket SP3 (LGA4094)
 System Memory
Capacity - 8 DIMM slots
Type - Eight Channel DDR4 memory technology
- Supports DDR4 RDIMM and LRDIMM
DIMM Size Per DIMM - RDIMM: 32GB, 16GB, 8GB
- LRDIMM: 128GB, 32GB
DIMM Frequency - RDIMM: 3200/2933/2666/2400MHz
- LRDIMM: 3200/2933/2666/2400MHz
Voltage - 1.2V
 Expansion Slot
PCIe 3.0 x 16 - PCIE1: Gen3 x16 link
- PCIE3: Gen3 x16 link
- PCIE5: Gen3 x16 link
- PCIE7: Gen3 x16 link
PCIe 3.0 x 8 - PCIE2: Gen3 x8 link
- PCIE4: Gen3 x8 link
- PCIE6: Gen3 x8 link
 Storage
SATA Controller - 9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port)
OCuLink for U.2 - 2
 Ethernet
Interface - 10000/1000 /100 /10 Mbps by Intel® X550
LAN Controller - 2 x RJ45 10G base-T by Intel® X550
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy E_cient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
 Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 128Mb

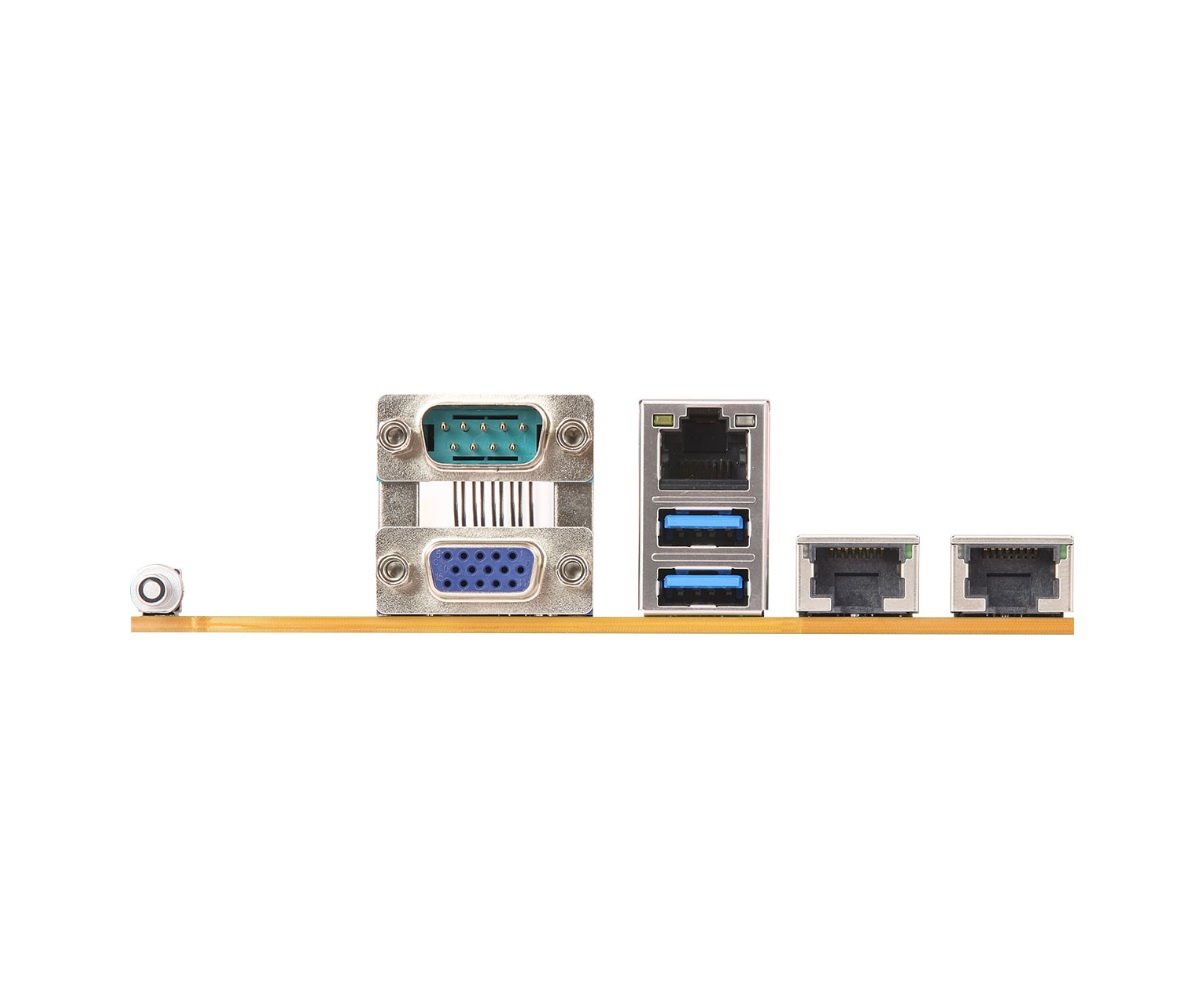

 Rear Panel I/O
VGA Port - 1 x D-Sub
USB 3.1 Gen1 Port - 2
Lan Port - 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 x COM port
UID Button/UID LED - 1
 Internal Connector
SATA DOM - 1
M.2 - 2(M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))
Front LED - 1
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TR1 Header - 1
TPM Header - 1
IPMB Header - 1
Fan Header - 7 Fans x 6-pin (1CPU/4Front/2Rear)
ATX Power - 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)
USB 3.1 (Gen1) Header - 1 (supports 2 USB 3.0 ports)
USB 2.0 Header - 1
Speaker Header - 1
BMC_SMB Header - 1
Clear CMOS - 1
PSU SMB Header - 1
 Onboard LED
80 Debug Port LED - 1
Fan Fail LED - 1 (only Fan Fail LED)
 System BIOS
BIOS Type - 32MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
 Hardware Monitor
Temperature - CPU Temperature Sensing
- MB/TR1/Card side Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB
 Support OS
OS Microsoft® Windows®
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)

Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit)
- CentOS 6.9 (64 bit) / 7. 3 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit)
- Ubuntu 16.04 (64 bit) / 17.04 (64 bit)
- CITRIX XenServer 7.5

Virtual:
- VMWare® ESXi 6.5 u1
- vSphere 6.5 u1

* Please refer to our website for the latest OS support list.
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=EPYCD8-2T#Specifications











Parametry





Základní parametry
Určení:  Servery
Formát základní desky:  ATX
Herní:  NE

Socket
Socket:  SP3 socket
Výrobce čipsetu:  AMD
Čipset:  System on Chip
Počet CPU socketů:  Single socket

Paměť
Typ paměti:  DDR4
Počet paměťových slotů:  4
Maximální frekvence paměti [MHz]:  2933
Podpora ECC:  ANO
