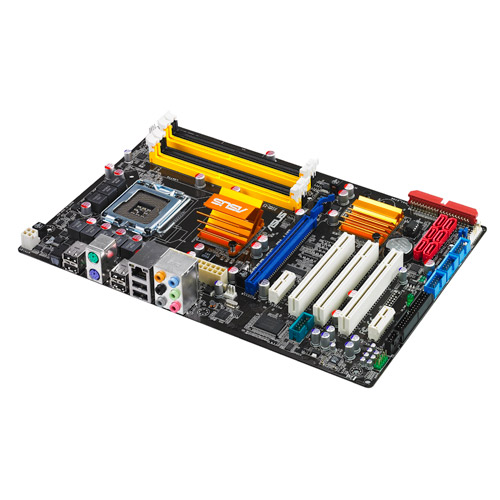

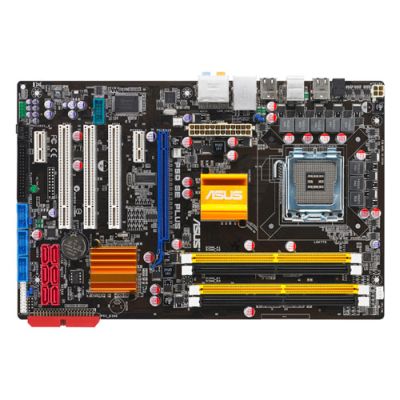

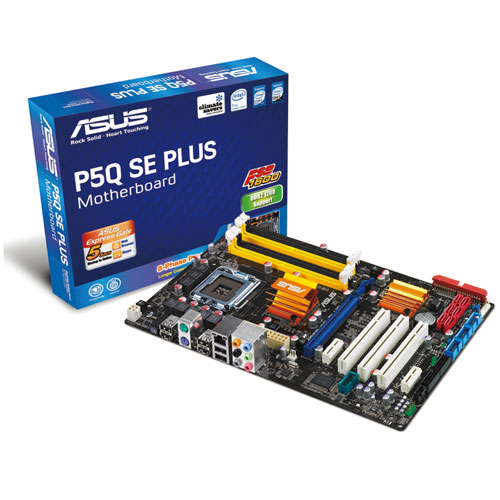

ASUS M/B P5Q SE PLUS 755/1600 P45 PCIe/6xSATA/C/GL,12USB

Popis produktu:

Technické parametry
Procesor Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Celeron dual-core / Celeron Processors Compatible with Intel® 05B/05A/06 processors
Supports Intel® 45nm Multi-Core CPU
Čipová sada Intel® P45 / ICH10 with Intel® Fast Memory Access Technology
FSB 1600/1333/1066/800 MHz
Paměť 4 x DIMM, Max. 16 GB, DDR2 1200*/1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lists).
**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended
Rozšiřující sloty 1 x PCIe 2.0 x16
2 x PCIe x1
3 x PCI
Úložiště Southbridge
6 xSATA 3 Gb/s ports
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100/66 port for up to 2 PATA devices
LAN Realtek Gigabit LAN controller featuring AI NET 2
Zvuk VIA VT1708s 8 -Channel High Definition Audio CODEC
- Support, Multi-streaming
- Optical S/PDIF out port at back I/O
- ASUS Noise Filtering
USB 12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
Jedinečné funkce ASUS ASUS Power Saving Solution:
- 8-Phase Power Design
- ASUS EPU- 4 Engine
- ASUS AI Nap
ASUS Exclusive Features:
- ASUS Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: heatsink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Možnosti přetaktování Intelligent overclocking tools
- ASUS AI Booster Utility
Precision Tweaker
- vDIMM: 6 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 6.25 mV increment
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- PCI Express frequency tuning from 100 MHz up to 180 MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Speciální funkce ASUS MyLogo 2

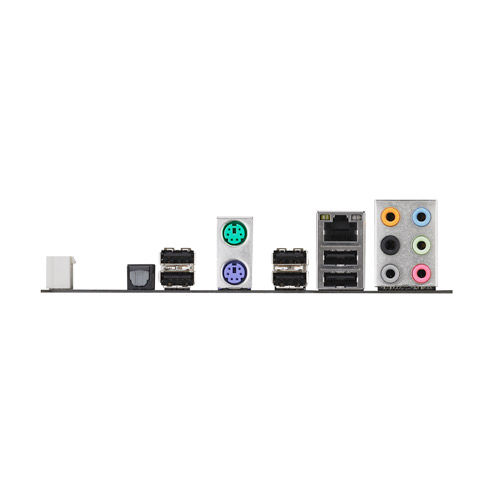

Porty na zadním panelu 1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x S/PDIF Out (Optical) port
1 x RJ45 port
6 x USB 2.0/1.1 ports
8-channel Audio I/O ports
Interní I/O konektory 3 x USB connectors support 6 additional USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS 8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Příslušenství 1 x UltraDMA 133/100/66 cable
2 x Serial ATA cables
I/O Shield
User's manual
2 in 1 Q-connector
CD podpory Drivers
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Anti-virus software (OEM version)
Velikost ATX Form Factor
12 x 7.8 ( 30.5 cm x 19.8 cm )
