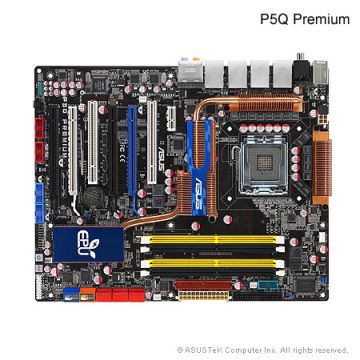

ASUS M/B P5Q PREMIUM 775/1.6K P45 4PCIe/2CF/10xRS/FW/4GL,iTPM,14U

Popis produktu:

CPU Intel Socket 775 Processors for Intel® Core™2 Extreme/Core™2 Quad/ Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® 45nm multi-core CPU

Chipset Intel P45 / ICH10R with Intel® Fast Memory Access(FMA) support

Front Side Bus 1600/1333/1066/800 MHz
Memory 4 x DIMM, Max. 16 GB, DDR2 1200/1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Please refer to www.asus.com or user manual for Memory QVL.
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots 1 x PCI Express 2.0 x16 slot at max. x16 link (blue)
1 x PCI Express 2.0 x16 slot at max. x8 link (white)
2 x PCI Express x16 slot at max. x4 link (black)
1 x PCIe x1
2 x PCI
CrossFire Support ATI CrossFireX™ technology, up to Quad CrossFireX
Storage Southbridge
6 xSATA 3 Gb/s ports Intel® Matrix Storage Technology Support RAID 0,1,5,10
Marvell 88SE6121
1 x UltraDMA 133/100/66 for up to 2 PATA devices
Silicon Image Sil5723 (Drive Xpert technology)
4 x SATA 3Gb/s (orange and blue)
Supports EZ Backup and Super Speed functions
LAN Quad Gigabit LAN controllers
Marvell 88E8056® Gigabit LAN controller featuring AI NET 2, Teaming, and Redundant

Audio ADI® AD2000B 8 -Channel High Definition Audio CODEC
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial/Optical S/PDIF out ports at back I/O
- ASUS Noise-Filtering

IEEE 1394 LSI 3227 2 x 1394a ports
USB 14 USB 2.0 ports (4 ports at mid-board, 10 ports at back panel)
ASUS Unique Features ASUS Exclusive Features:
- ASUS 16-Phase Power Design
- Express Gate SSD
ASUS Power Saving Solutions:
- ASUS EPU-6 Engine
- ASUS AI Nap
ASUS Quiet Thermal Solutions:
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Fan Xpert
ASUS Crystal Sound:
- AI Audio 2
- ASUS Noise Filtering
ASUS EZ DIY:
- ASUS Drive Xpert
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS AI Direct Link
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2

Overclocking Features ASUS AI Booster
Precision Tweaker 2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vDIMM: 64-step DRAM voltage control
- vChipset (NB): 55-step chipset voltage control
- vCPUPLL: 64-step reference voltage control
- vFSB Termination: 40-step voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS MyLogo2
ASUS Data Guardian--TPM support
Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse combo port
1 x Optical + 1 x Coaxial S/PDIF Output
4 x LAN (RJ45) port
10 x USB 2.0/1.1 ports
8-channel Audio I/O
Internal I/O Connectors 2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors (red)
4 x Drive Xpert SATA connectors (orange and blue)
1 x CPU Fan connector
3 x Chassis Fan connector
1 x Power Fan connector
2 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
8-pin ATX 12V Power connector
Power on Switch
Reset Switch
System Panel (Q-Connector)

BIOS 16 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4

Manageability WOL by PME, WOR by PME, WOR by Ring, Chasis Intrusion, PXE
Accessories 1 x UltraDMA 133/100/66 cable
1 x FDD cable
8 x Serial ATA cable
2 x 2-port Serial ATA power cable
1 x eSATA + 1-port 1394 (4-pin) module
1 x TPM module
1 x Q-Shield
1 x User's manual
1 x Optional Fan
1 x 3 in 1 Q-connector (Retail version only)
Support Disc Drivers
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Image-Editing Suite
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
