ASUS M/B CROSSHAIR III FORMULA AM3 DDR3 790FX

Popis produktu:

Technické parametry
Procesor Procesory AMD Socket AM3 ;Athlon™ II/Sempron™ 100 Series/Phenom™ II
AMD 140W CPU Support
Technologie AMD Cool 'n' Quiet™
Podpora vícejádrových CPU Intel® 45nm
Čipová sada AMD 790FX/SB750

test Rychlost až 5200 MT/s ; HyperTransport™ 3.0
Paměť 4 x DIMM, Max. 16 GB, DDR3 1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered
Paměť
Architektura paměti Dual Channel
* Seznam odsouhlasených QVL dodavatelů paměťových modulů (Qualified Vendors Lists) naleznete na www.asus.com nebo v této Uživatelské příručce.
**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Rozšiřující sloty 2 x PCIe 2.0 x16 (@ dual x16)
3 ( the PCIEx1_1 (black) is compatible with audio slot)
1 x PCI 2.2
Podpora více GPU Support ATI CrossFire™X Technology graphics cards
Úložiště SB750 Chipset
1 xUltraDMA 133/100/66 for up to 2 PATA devices
5 xSATA 3 Gb/s porty Podpora RAID 0,1,5,10,JBOD
1 x External SATA 3Gb/s port on rear (SATA On-the-Go)

* Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.
LAN Gigabit LAN controller, featuring AI NET 2
Zvuk 8 -mi kanálový High Definition Audio CODEC
SupremeFX X-Fi Audio Card
- EAX® Advanced™ HD 4.0
- X-Fi CMSS®-3D
- X-Fi Crystalizer™
- Creative ALchemy
- Supports 1 x S/PDIF out header
- Supports Coaxial/Optical S/PDIF out ports on rear
IEEE 1394 2 x 1394a porty (1 port at back I/O, 1 port onboard)
USB 12 USB 2.0 portů (6 ports at mid-board, 6 ports at back panel)

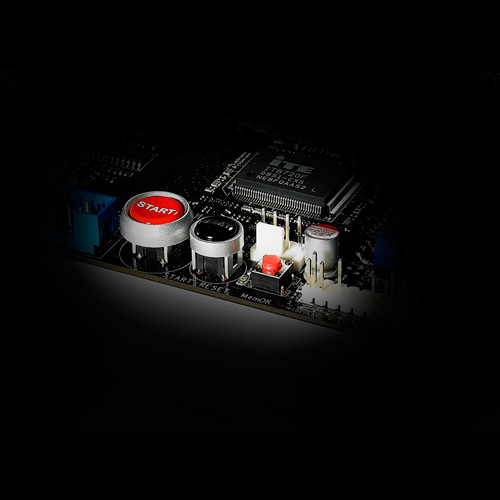

Možnosti přetaktování MemOK!
CPU Level Up
Extreme Tweaker
Power Design:
- 8+2 phase CPU power design
Keyboard-TweakIt
iROG
Loadline Calibration
Intelligent overclocking tools:
- ASUS TurboV
- O.C Profile
Overclocking Protection:
- COP EX (Component Overheat Protection - EX)
- Voltiminder LED
- ASUS C.P.R.(CPU Parameter Recall)
Speciální funkce ASUS MyLogo 3
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Q-Connector
ASUS Q-Fan 2
External LCD Poster
ASUS Q-Shield
AMD® OverDrive Support*
ASUS TurboV
Porty na zadním panelu 1 x externí SATA
1 x IEEE 1394a
1 x RJ45 port
6 x USB 2.0/1.1
1 x Clr CMOS switch
1 x PS/2 Keyboard port(purple)
Interní I/O konektory 3 x USB konektory supports additional 6 USB 2.0 ports
1 x IEEE 1394a konektor
1 x IDE connector for two devices
3 x konektor tepelného senzoru
5 x SATA connectors (Blue)
Systémový panel connector
8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional
1 x LCD Poster connector
24-pin ATX Power connector
8-pin ATX 12V Power connector
BIOS 16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS
Manageability WOL by PME,WOR by PME,WOR by PME
Příslušenství SupremeFX X-Fi audio card
1 x 2 in 1 Q-connector (USB, System panel; Retail version only)
1 x Multi-functional module (1-port IEEE 1394a + 2-port USB2.0)
External LCD Poster
UltraDMA 133/100/66 cable
Serial ATA cables
I/O shield
Cable Ties
User's manual
CD podpory Ovladače
ASUS PC Probe II
ASUS AI Suite
ASUS Update
Kaspersky® Anti-Virus
AMD OverDrive Utility (AOD)
Sound Blaster X-Fi Utility
Futuremark® 3DMark® 06 Advanced Edition
Velikost Formát ATX
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
